5 Watt Solar Panel Kit
The 5w PV Logic solar panel is the ideal choice to provide a continuous trickle feed to maintain and extend the life of any 12-volt battery and it delivers up to 32.5wh per day.
Benefitting from a 10 year product warranty, it is fitted with a blocking diode to prevent reverse current drain.

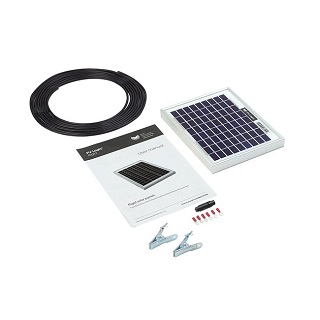

The 5w panel is supplied with a 4m cable, connectors, fuse and detailed installation instructions.
NOTE – The 5W panel kit does not require a charge controller if the battery to be used is larger than 35Ah.
Find out if this solar panel will meet your requirements here
5 W Solar Panel Kit Specifications and Technical Details
High efficiency crystalline cell for “all weather” charging
Perfect for battery maintenance and off grid lighting projects
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
20 year cell warranty and 10 year module warranty
Power - 5watts
Size 306mm x 218mm x25mm (depth)
Watts per day - 30
Amp hours per day -1.74
Charge Controller - N/A
Vmp (VDC) nominal voltage - 17.5
Imp (A) nominal current 0.29
Voc (V) 22
Isc (A) short circuit current 0.32
* Watts and Amp hours/day based on 6 hours of average daily peak sunshine hours.
Solar Panel Installation Instructions
Other solar Panel Kit options
| Power | Size | Weight (kg) | Watts per day (W) | Amp hrs per day (A) | Charge Controller | Vmp (VDC) | Imp (A) | Voc (V) | Isc (A) |
| 5W | 306x218x25mm | 0.8 | 30 | 1.74 | N/A | 17.5 | 0.29 | 22 | 0.32 |
| 10W | 397x280x25mm | 1.3 | 60 | 3.48 | N/A | 17.5 | 0.58 | 22 | 0.64 |
| 20W | 540x278x25mm | 1.7 | 120 | 6.9 | 10Ah | 17.5 | 1.15 | 22 | 1.27 |
| 30W | 660x280x25mm | 2.7 | 180 | 10.3 | 10Ah | 17.5 | 1.72 | 22 | 1.9 |
| 45W | 634x535x25mm | 3.6 | 270 | 15.4 | 10Ah | 17.5 | 2.58 | 22 | 2.86 |
| 60W | 670x640x35mm | 4.5 | 360 | 20.94 | 10Ah | 17.5 | 3.49 | 22 | 3.97 |
| 80W | 885x670x35mm | 6.7 | 480 | 27.9 | 10Ah | 17.5 | 4.65 | 22 | 5 |
| 100W | 1005x670x35mm | 7.8 | 600 | 30.72 | 10Ah | 19.5 | 5.12 | 23 | 5.45 |
| 120W | 1195x670x35mm | 9.2 | 720 | 41.88 | 10Ah | 17.5 | 6.98 | 22 | 7.93 |
| 150W | 1475x670x35mm | 11.1 | 900 | 52.32 | 10Ah | 17.5 | 8.72 | 22 | 9.72 |
| 200W | 1850x670x40mm | 14.8 | 1200 | 60.4 | 20Ah | 17.5 | 10.5 | 22 | 11.45 |
